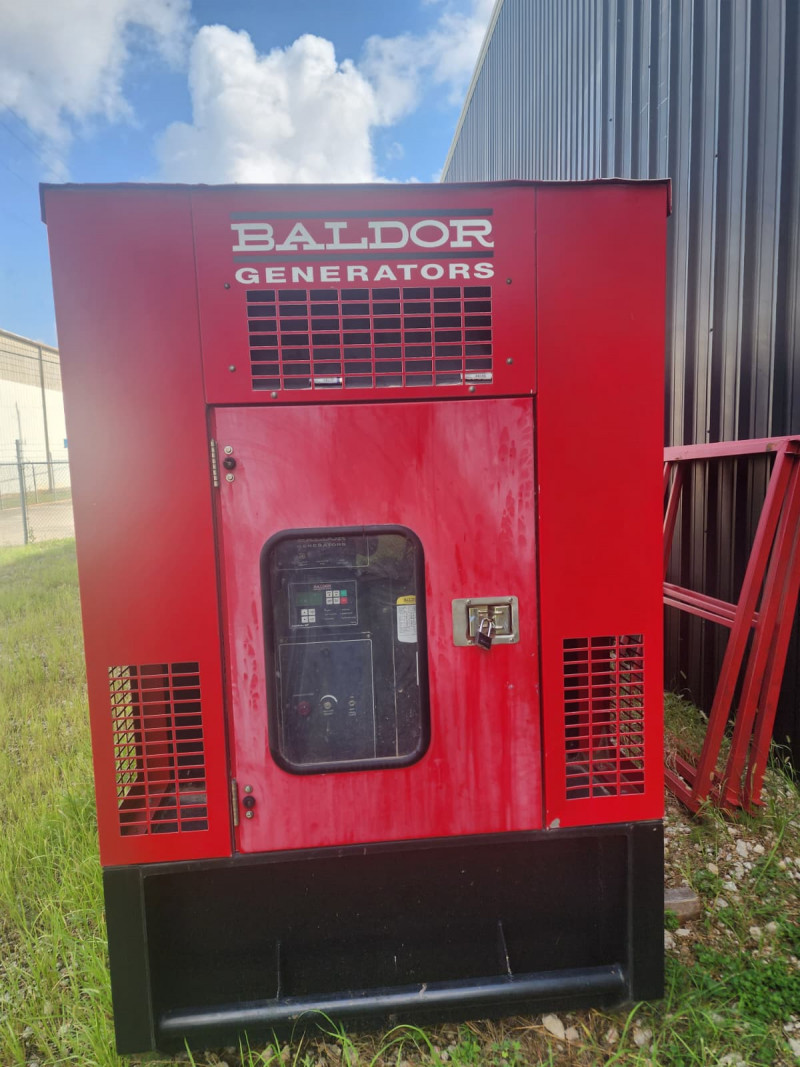

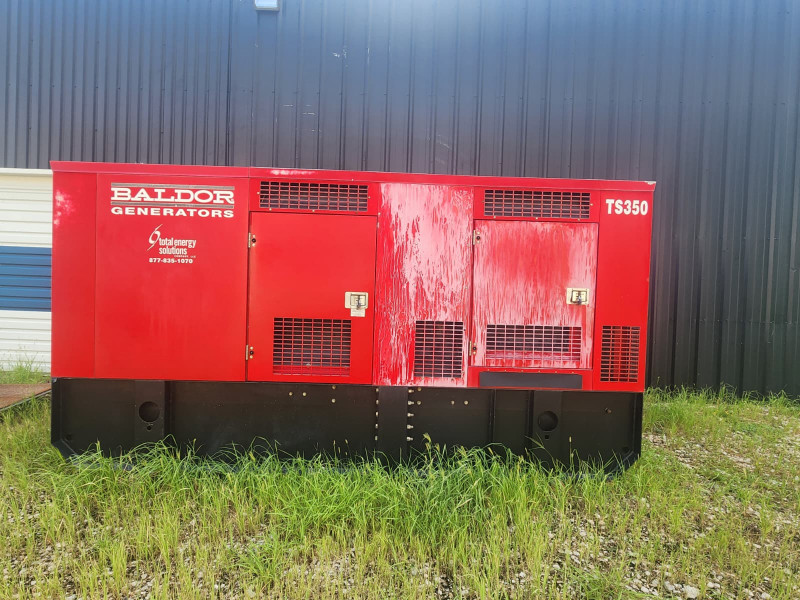

Baldor TS350S Diesel Generator

The Baldor TS350S is a high-performance, heavy-duty industrial diesel generator built for reliable prime and standby power delivery in demanding environments. Powered by a Tier 3 John Deere industrial engine, this generator delivers up to 280 kW / 350 kVA standby output, making it an ideal choice for commercial job sites, emergency backup, and heavy industrial applications.

Designed for stationary use without a trailer, the TS350S features a heavy-gauge aluminum sound-attenuated enclosure for quiet operation, along with a durable powder-coat finish to withstand harsh outdoor elements. Its long-run, internal double-wall metal fuel tank ensures continuous multi-shift operation.

Power Ratings

  • Standby Rating (60 Hz): 350 kVA / 280 kW
  • Prime Rating (60 Hz): 319 kVA / 255 kW
  • Frequency: 60 Hz
  • Power Factor: 0.8 (3 Phase)
  • Voltage Regulation: ±0.5%

Voltage & Amperage Outputs

  • 3-Phase Voltage Adjustable: 208 / 220 / 240 / 416 / 440 / 460 / 480 V
  • Single-Phase Voltage Adjustable: 120 / 127 / 139 / 240 / 254 / 277 V
  • 3-Phase Amperage @ 240V: 842 A
  • 3-Phase Amperage @ 480V: 421 A

Engine & Fuel System

  • Engine Make/Model: John Deere Industrial Diesel (Tier 3)
  • Engine Speed: 1800 RPM
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 390 Gallons
  • Fuel Consumption (Standby Rating):
    • 1/2 Load: 12.0 GPH (~32.5 hours run time)
    • Full Load: 19.6 GPH (~19.9 hours run time)

Receptacles & Outlets

  • 120V 20A Duplex GFCI: 4
  • 120/240V 50A Twistlock (CS6369): 4

Dimensions & Weight (Without Trailer)

  • Dimensions (L x W x H): 195” x 66” x 97”
  • Dry Weight (Without Fuel): 7,350 lbs
  • Sound Level: ~70 dB(A) @ 7 meters (Full Load)
  • Industrial John Deere Engine: Powered by a reliable Tier 3 John Deere engine with electronic governor for fast response and stability.
  • Quiet & Durable Enclosure: Heavy-gauge aluminum sound-attenuated enclosure with internal muffler, durable powder-coat paint, and padlockable doors.
  • Long-Run Fuel Capacity: Features an integrated 390-gallon double-wall internal fuel tank providing up to 32.5 hours of run time at half load.
  • Digital Controller & Safety Shutdowns: Includes automatic safety shutdowns and digital readouts for oil pressure, coolant temp, overcrank, and overspeed.
  • Multi-Voltage Receptacle Panel: Equipped with GFCI 120V duplex receptacles and 50A twistlock receptacles powered across all main voltage configurations.
  • Brushless Alternator: Low-maintenance alternator design offering ±0.5% voltage regulation.
  • 1785855941_baldor_ts350s_spec_sheet.pdf
