Ultra-Turbid Water Imaging for Shallow-Water Inspection
Product Overview

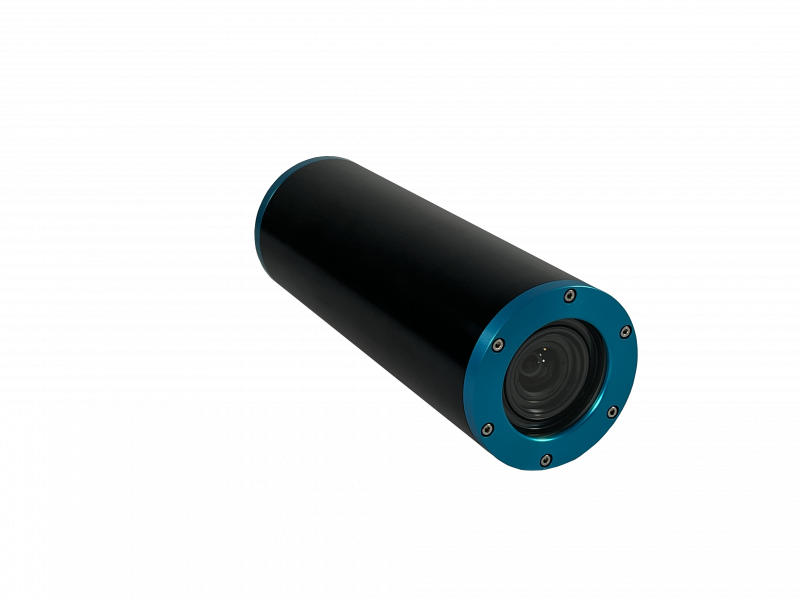

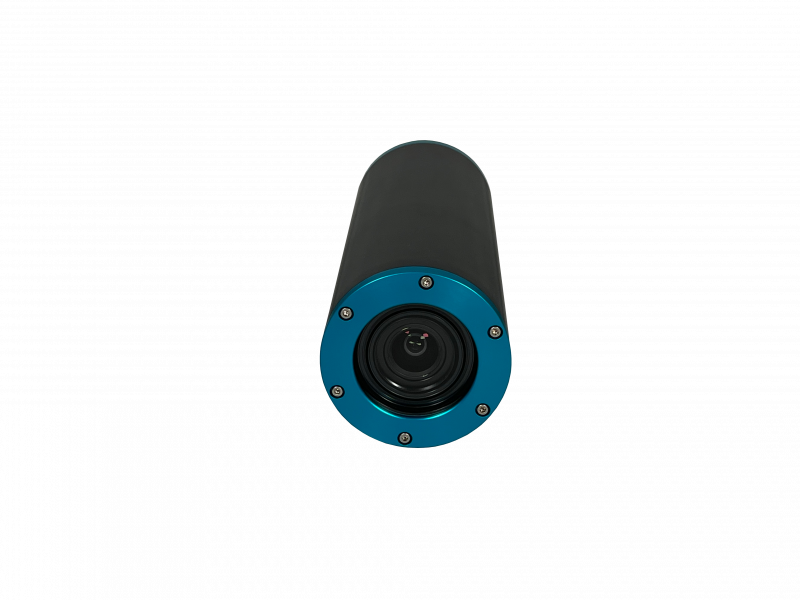

The ORPHIECAM 300 is the standard, full-sized version of the Orphie imaging range from i2S. While the "Mini" version is optimized for tight integration on micro-ROVs, the ORPHIECAM 300 is the go-to choice for professional divers and inspection-class ROVs that require a robust, all-in-one housing.
It is best known for its "Visibility x3" promise—using patented real-time algorithms to allow operators to see three times further than a standard camera in high-turbidity (murky) water. It effectively "washes away" backscatter and sediment particles from the live feed.
| Specification | Details |
|---|---|
| Sensor | 2/3″ CMOS Color Sensor |
| Resolution | 1080p (Full HD) @ 25 fps |
| Field of View (Water) | 62° (Diagonal) / 54° (Horizontal) / 40° (Vertical) |
| Depth Rating | 300 meters (984 ft) |
| Data Transmission | Ethernet 100BASE-T (H.264 compression) |
| Bandwidth | 10 to 12 Mbps (Adjustable) |
| Voltage & Power | 12-32 VDC / 13W maximum |
| Dimensions | Length = 254.5 mm / Diameter = 90 mm |
| Weight | 2.3 kg (Air) / 0.6 kg (Water) |
The Compact Benchmark for High-Visibility Shallow Water ImagingProduct Overview The ORPHIE 300...

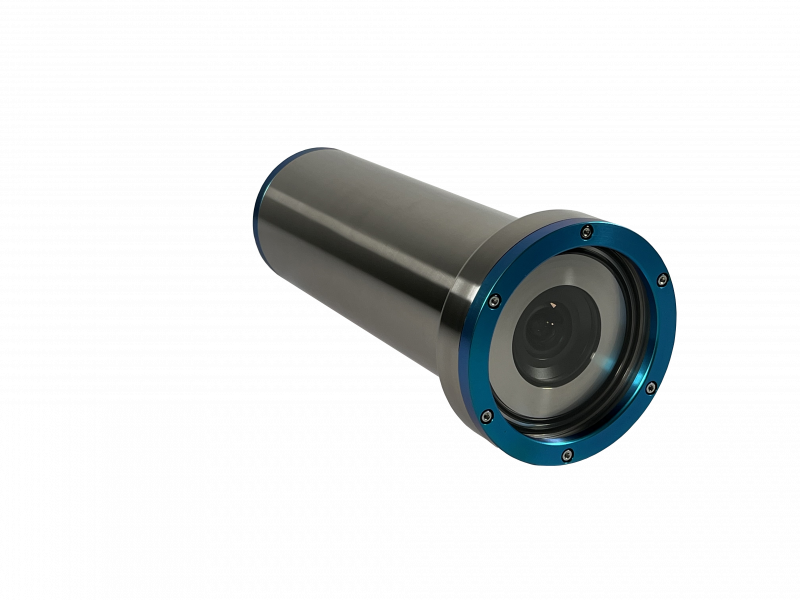

The Deep-Sea Benchmark for Turbid-Water VisionProduct Overview The ORPHIECAM 3000 is the rugged...

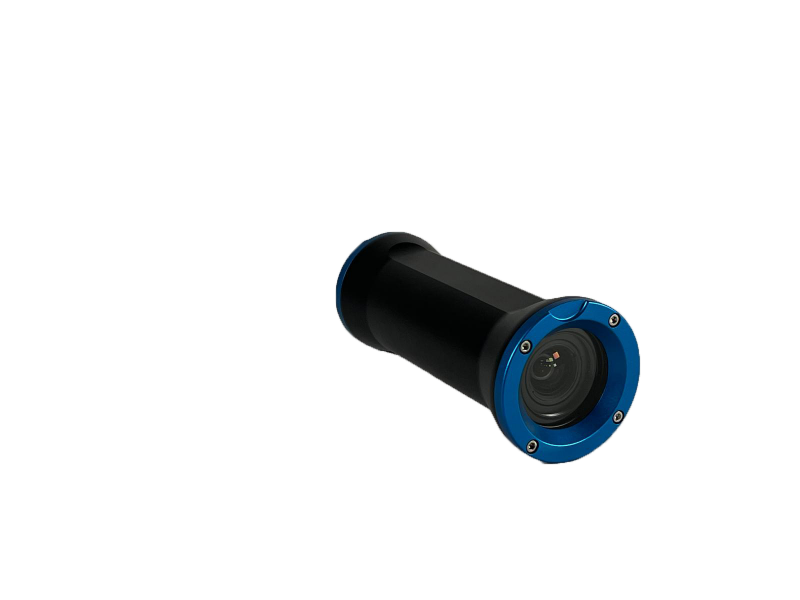

The Ultimate Divers' Ally for High-Visibility OperationsProduct Overview The ORPHIESCAPH is a specia...
