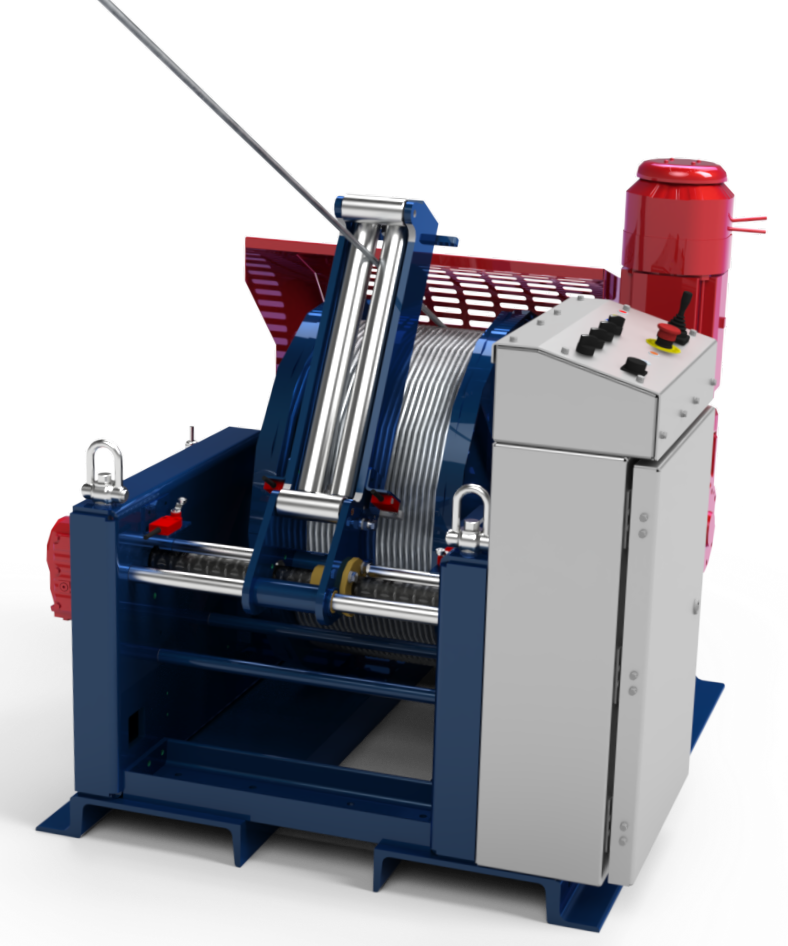

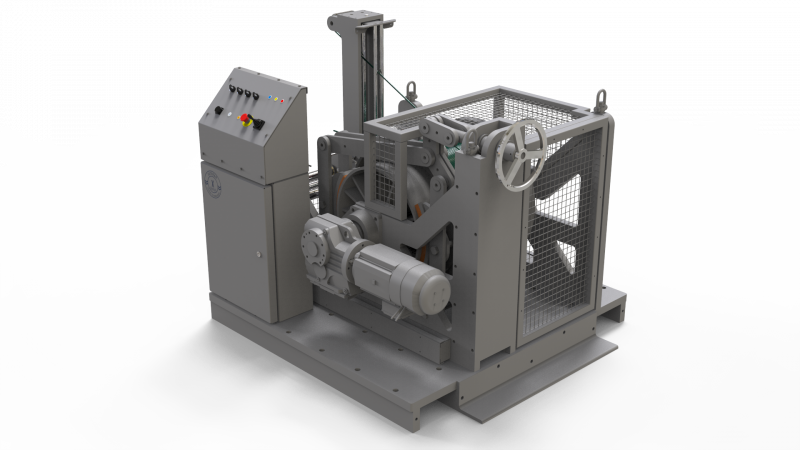

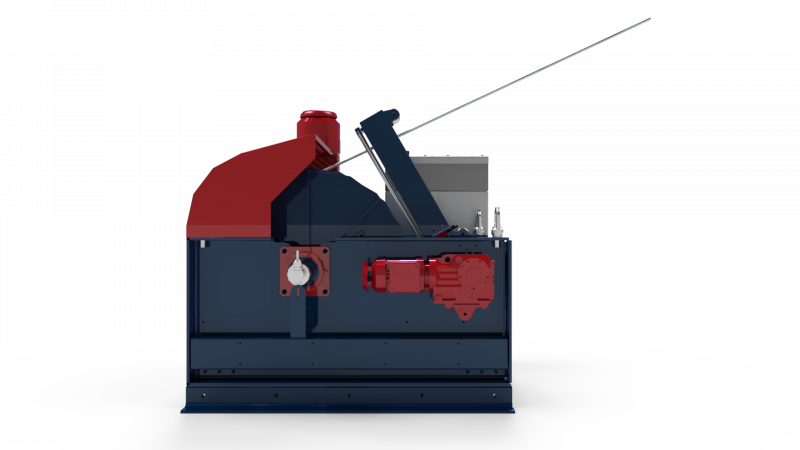

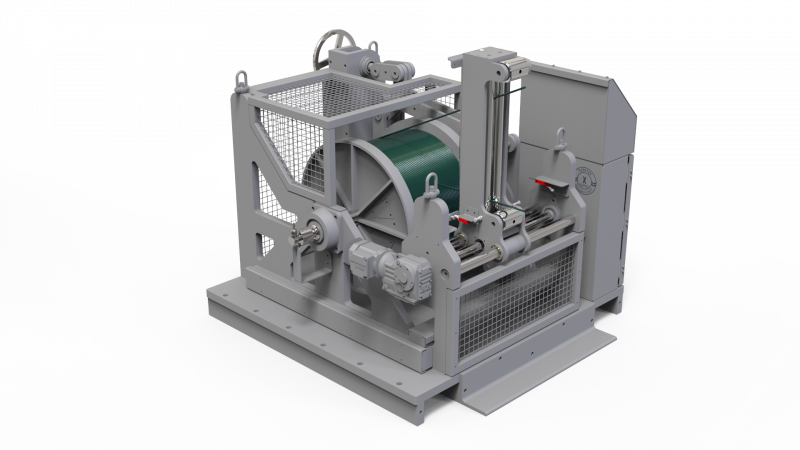

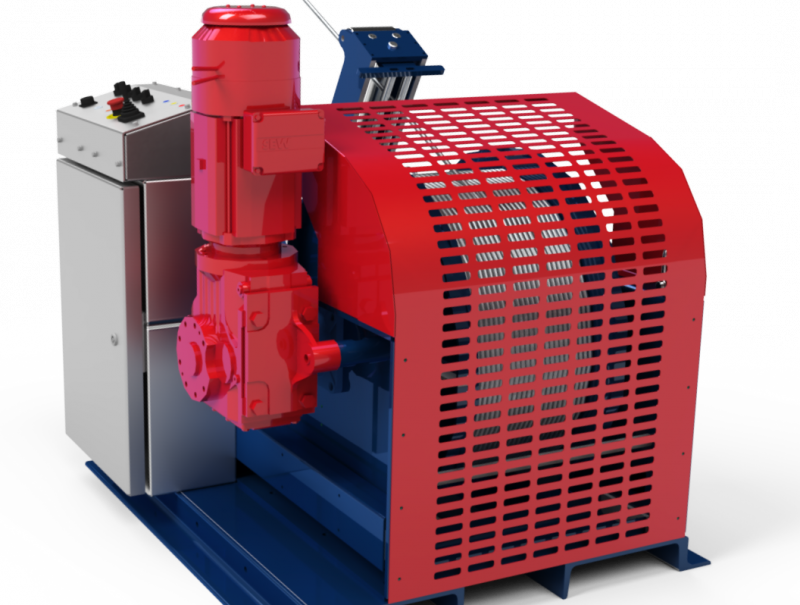

XSTREAM MARINE MULTI-PURPOSE ELECTRIC WINCH - ALM SERIES

The ALM series electric winches by Xstream Marine Technologies have been specifically developed for oceanographic and geophysical applications. These light weight winches excel in tasks such as CTD profiling, side scan sonar or magnetometer towing, and Rosete water sampling. With their precise control and rapid operation, these winches offer excellent performance for various marine research activities.


The ALM’s winches are fully electrically driven, ensuring efficiency and reliability. They are built to be robust, powerful, and compact, making them suitable for a range of vessels and deck layouts. The controls are user-friendly, allowing for easy operation by utilizing either the local joystick control or remote-control options.


Xstream Marine Technologies’ ALM series electric winches offer a reliable and user-centric solution for oceanographic and geophysics applications, combining high performance, durability, and enhanced safety features.

Model: (ALM-30, ALM-50, ALM-125)



ALM-30


Winch dimensions (mm)

  • Width: 1500
  • Depth: 1450
  • Height: 1446

Drum dimensions (mm)

  • Core: Ø559
  • Flange: ø720
  • Length: 380

Cable OD (mm) / Capacity – length (meter): 8.18 mm / 900m

Winch weight (without cable)

  • 918 Kg

Line Pull: 0.20ton

Line Speed: 43 m/min

Motor Size: 3 hp

Power Supply (V): 1P, 220



 ALM-50


Winch dimensions (mm)

  • Width: 1660
  • Depth: 1450
  • Height: 1446

Drum dimensions (mm)

  • Core: Ø559
  • Flange: ø770
  • Length: 400

Cable OD (mm) / Capacity – length (meter): 8.18 mm / 1500m

Winch weight (without cable): 980 Kg

Line Pull: 0.35ton

Line Speed: 41 m/min

Motor Size: 5 hp

Power Supply (V): 1P, 220



ALM-125


Winch dimensions (mm)

  • Width: 1800
  • Depth: 1450
  • Height: 1528

Drum dimensions (mm)

  • Core: Ø559
  • Flange: ø890
  • Length: 400

Cable OD (mm) / Capacity – length (meter): 11.43 mm / 1600m

Winch weight (without cable): 1100 Kg

Line Pull: 0.75ton

Line Speed: 45 m/min

Motor Size: 12.5 hp

Power Supply (V): 3P, 460

  • Easy to Operate with different sizes of cable
  • Requires minimal maintenance
  • Integrated protection frame and grating
  • ACME Screw level wind system
  • Remote control with joystick and emergency stop
  • Manual override for level wind from remote
  • Drive start and reset capability from remote control.
  • Forklift pockets (standard on all ALM models)
  • 1734490659_Broucher_ALM_Series.pdf
