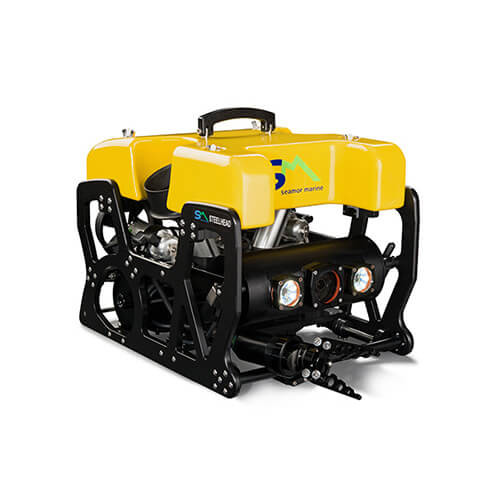

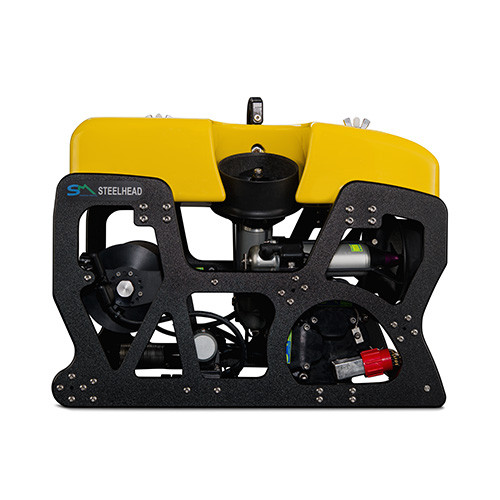

SEAMOR MARINE : Steelhead inspection-class ROV

The Steelhead inspection-class ROV is a portable, lightweight, and stable underwater system designed for ease of operation through intuitive flight controls. Its compact profile enables it to inspect confined spaces and be conveniently stowed.


Easily deployed and recovered from small vessels and docks without the need for hoists or cranes, the Steelhead features a standard definition NTSC/PAL camera optimized for low-light conditions, providing operators with quality video feedback. "Out of the box" features include an integrated controller and LCD monitor module with auto depth, auto heading, a digital video recorder, and more.

VEHICLE DIMENSIONS & ATTRIBUTES


  • Depth Rating: 300 m (1,000 ft)
  • Size (L x W x H): 502 mm x 384 mm x 373 mm (19.8” x 15.1” x 14.7”)
  • Diagonal: 515 mm ( 20.3”)
  • Weight in air: ~ 21 Kg (47 lbs) (standard vehicle trimmed for fresh water)
  • Construction: Anodized aluminum, stainless steel, syntactic foam and marine-grade polymers


THRUSTERS


  • Configuration: Two (2) horizontal and two (2) vertical/lateral thrusters. Built-in short-circuit protection on each channel
  • Speed: 1.75 knots (dependent on environment and configuration)


FORWARD CAMERA AND LIGHTS


  • Format: NTSC or PAL (full broadcast-quality)
  • Focus: Manual and Automatic
  • Zoom: 3x optical, up to 32x total zoom
  • Tilt Range: +/- 90 degree rotation
  • Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
  • Lasers: Optional parallel green lasers on 150 mm (6") baseline for scale reference


AUXILIARY CAMERA AND LIGHTS


  • Type: Colour or Black & White, low light
  • Format: NTSC or PAL
  • Focus: Fixed
  • Lights: Two (2) X 1,500 lumens (3,000 lumens total) on/off control


TETHER


  • Length: 165 m (540 ft) standard starting length; 335 m (1,100 ft) standard long length; on manual reel. Other lengths available upon request
  • Diameter: 10 mm / 0.4" (nominal)
  • Breaking strength: 700 kg f, Kevlar reinforced
  • Weight in water: Neutrally buoyant in fresh water


SENSORS


  • Pressure / Depth
  • Compass heading
  • Pitch and roll
  • Dedicated leak and temperature sensors in both the electronics and camera canisters


CONTROL SYSTEM


  • Pelican Case mounted controller
  • Built-in 15” LCD monitor
  • Digital video recorder included
  • Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time


  • Intuitive controller
  • Broadcast-quality colour, zoom camera
  • Variable speed & directional ROV control
  • Integrated controller with LCD monitor
  • Digital Video Recorder (DVR)
  • Manual & automatic camera focus control
  • Depth-rated to 300 m (1000 ft)
  • Auto depth, auto heading functions
  • Four (4) powerful thrusters
  • Leak detection warning system
  • Tether-launchable


  • 1710257830_SM_Steelhead-Spec.pdf
