The "High-Visibility" Solution for Deep and Turbid Waters
Product Overview

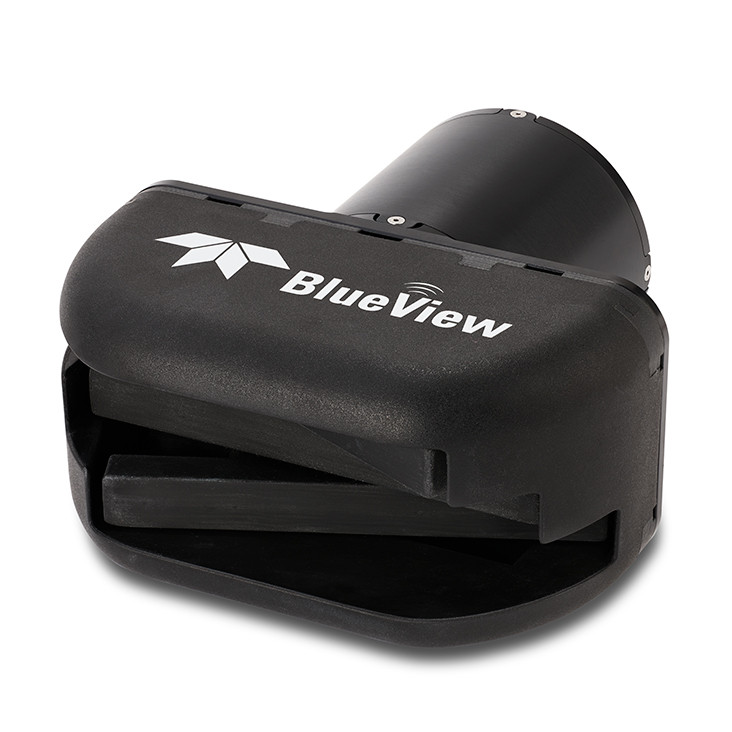

The Teledyne BlueView M450 Mk2 is a compact, high-performance 2D multibeam imaging sonar designed specifically for long-range underwater detection and navigation. Operating at 450 kHz, it occupies the "long-range" slot in the M-Series lineup, providing a significant boost in distance over the higher-frequency M900 models while maintaining a wide 130° field of view.
The Mk2 generation features a unique open nose cone design, which eliminates the acoustic losses associated with traditional oil-filled or solid-capped sonars. This results in crisper, "video-like" imagery with improved range performance, even in zero-visibility conditions or dynamic environments.
| Specification | Details |
|---|---|
| Operating Frequency | 450 kHz |
| Field of View (FOV) | 130° Horizontal x 10° Vertical |
| Maximum Range | 300 meters |
| Optimum Range | 2 – 150 meters |
| Number of Beams | 768 |
| Beam Spacing | 0.18° |
| Range Resolution | 50.8 mm (2.0 inches) |
| Update Rate | Up to 20 Hz (Range-dependent) |
| Power Consumption | 24 Watts (max) |
| Weight (Air/Water) | 3.5 kg / 1.6 kg (Standard 1000m version) |
