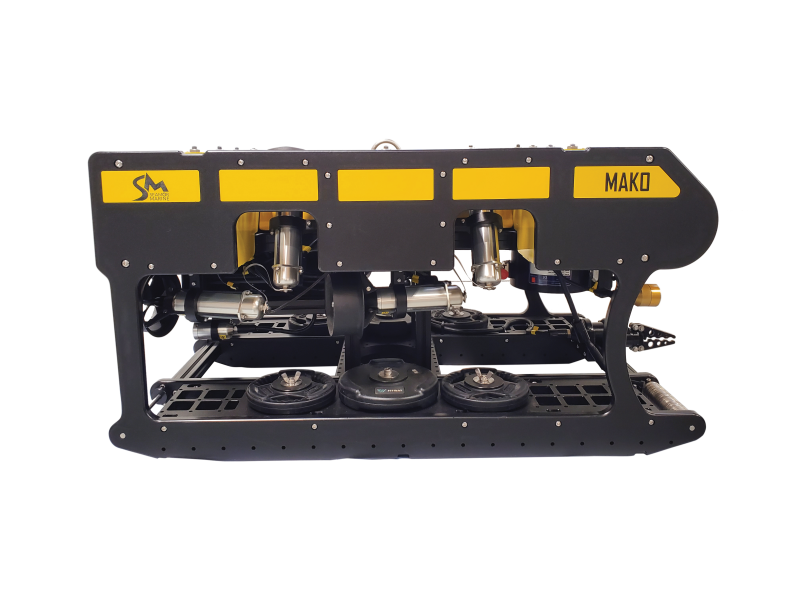

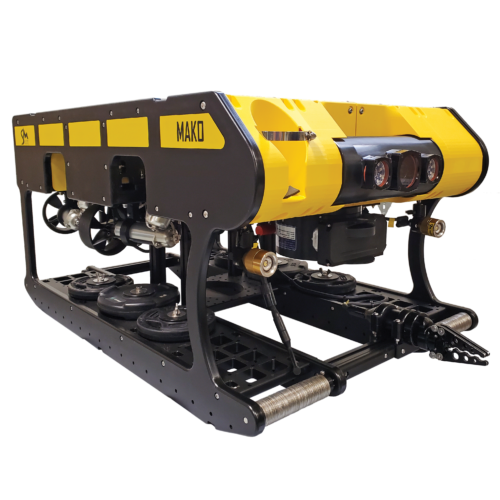

SEAMOR MAKO

SEAMOR Marine's latest ROV, the Mako, boasts a large open-frame design with versatile mounting options, enabling it to accommodate various accessories while maintaining the power capacity to operate them concurrently.


With a payload capacity of 14 kg (upgradable to 22.5 kg), the Mako allows for the installation of heavy instrumentation, including multi-beam imaging sonars. Users can effortlessly mount and position accessories without the need for specialized tools. The spacious accessory bay enhances flow-through, ensuring optimal thruster efficiency and facilitating smooth operation regardless of payload.


Equipped with eight SEAMOR-designed thrusters, including four vertical thrusters for enhanced stability and four horizontal thrusters positioned to maximize forward thrust, the Mako offers exceptional maneuverability and control.

VEHICLE DIMENSIONS & ATTRIBUTES


  • Depth Rating: 300 m (1,000 ft) or 600 m (2,000 ft) with deep water model
  • Size (L x W x H): 840 mm x 635 mm x 674 mm (33” x 25” x 26.5”)
  • Diagonal: 890 mm ( 35”)
  • Weight in air: ~ 72 kg (160 lb) (8-thruster vehicle trimmed for fresh water)
  • Construction: Anodized aluminum, stainless steel, syntactic foam and marinegrade polymers
  • Payload: 14 kg (30 lb) standard; can be upgraded to 22.5 kg (50 lb)


THRUSTERS

  • Configuration:
  • Four (4) horizontal and four (4) vertical/lateral thrusters
  • Built-in short-circuit protection on each channel
  • Speed: 2 knots (dependent on environment and configuration)


FORWARD CAMERA AND LIGHTS


  • Format: NTSC or PAL (full broadcast-quality)
  • Focus: Manual and Automatic
  • Zoom: 3x optical, up to 32x total zoom
  • Tilt Range: +/- 90 degree rotation
  • Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
  • Lasers: Optional parallel green lasers on 150 mm (6") baseline for scale reference


AUXILIARY CAMERA WITH BUILT IN LED LIGHTING


  • Type: Colour or Black & White, low light
  • Format: NTSC or PAL
  • Focus: Fixed


TETHER

(Available in twisted pair or fiber optic configurations)


  • Length: 335 m (1,100 ft) standard starting length; max. std. length 500 m (1,640 ft) for twisted pair; 625 m (2,050 ft) for fiber optic, on manual reel
  • Diameter: 10 mm / 0.4" (nominal)
  • Breaking strength: 700 kg f, Kevlar reinforced
  • Weight in water: Neutrally buoyant in fresh water


SENSORS


  • Pressure / Depth
  • Compass heading
  • Pitch and roll
  • Dedicated leak and temperature sensors in both the electronics and camera canisters


CONTROL SYSTEM


  • Pelican Case mounted controller
  • Built-in 15” LCD monitor
  • Digital video recorder included
  • Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time


  • Heavy payload: 14 kg (30 lb) standard; upgradeable to 22.5 kg (50 lb)
  • Intuitive controller
  • High-quality colour, zoom camera – HD-SDI option with 1080p uncompressed
  • Variable speed & directional ROV control
  • Integrated controller with LCD monitor
  • 8 powerful, efficient thrusters
  • Digital Video Recorder (DVR)
  • Manual & automatic camera focus control
  • Depth-rated to 300 m (1,000 ft) or 600 m (2,000 ft) with deep-water model
  • Auto depth, auto heading functions
  • Leak detection warning system


  • 1710259719_SEAMOR MAKO_SPEC.pdf
