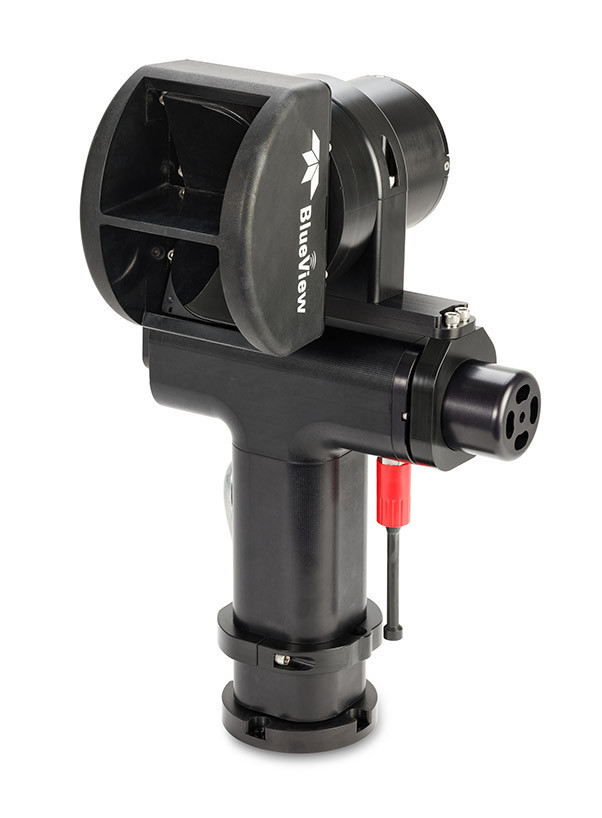

Teledyne Blueview's 3D Multibeam Scanning Sonar (BV5000)

Teledyne BlueView's 3D Multibeam Scanning Sonar offers high-resolution, laser-like imagery of underwater areas, structures, and objects, even in low to zero visibility conditions. The system is straightforward to deploy, easy to operate, and generates highly detailed 3D point clouds with minimal training. It can be used from a tripod, an ROV, surface vessel, or customized deployment solution.


The BV5000 collects 3D point clouds without requiring positioning, heading, pitch, or roll information from a stationary platform. Additionally, it can collect motion-compensated 3D point clouds using the MotionScan kit.

see attachment.


  • .XYZi files are compatible with 3rd party survey software packages
  • Manually adjustable scan speed from 1-10 degrees a second
  • Standard Ethernet/RS485 interface
  • Easy Windows-based software
  • Scan speeds from .5 to 10 degrees a second
  • Easy, one touch scan function
  • 3D mosaic imaging with or without position info
  • Easily combined with laser scan imagery
  • Compact size fits into tight spaces
  • Operates in low & zero visibility conditions


  • 1707953150_Blueview BV5000 Product leaflet.pdf
