Survey

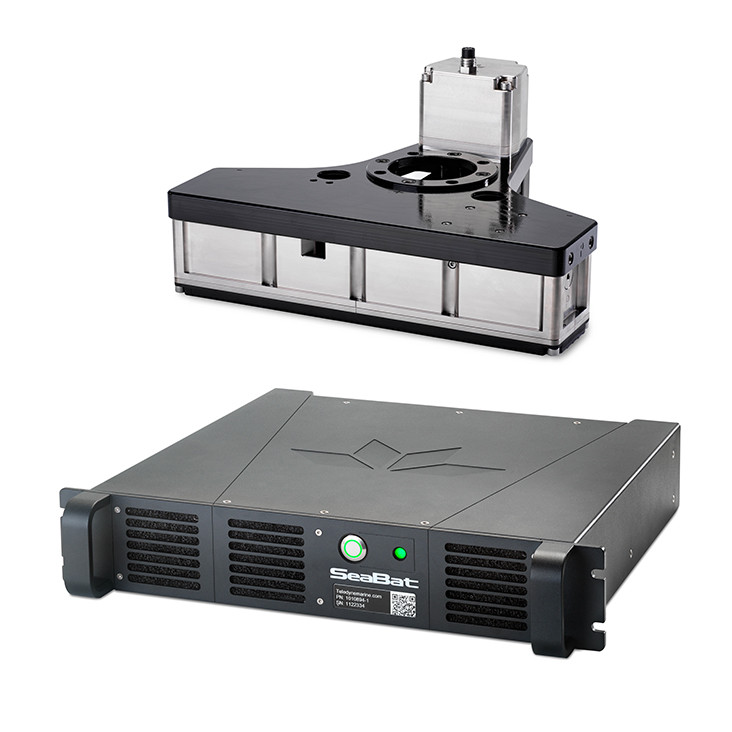

SeaBat T50-R

The SeaBat T50-R represents the newest addition to the renowned SeaBat T-series platform. This highly compact and versatile rack-mounted sonar system features a built-in INS, enabling rapid mobilization, minimal interfacing, and exceptionally low space requirements.

All-in-one, fully flexible and fully integrated survey system
The compact system allows for fast mobilization, minimal interfacing and extremely low space requirements
Unprecedented clean and ultra-high data quality for faster operational surveys and reduced processing time
Fully frequency agile from 190 to 420 kHz, allowing for improved swath performance and reduced survey time under challenging conditions
The new compressed water column data significantly reduces data volume while maintaining the required information
Normalized backscatter designed for accurate, reliable and repeatable sea bed classification

The SeaBat T50-R is fully frequency agile from 190 to 420 kHz, allowing for improved swath performance and reduced survey time under challenging acoustic conditions.

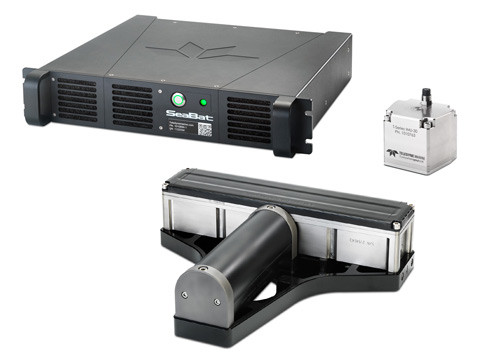

The Rack-mounted Sonar Processor comes with an optional industry leading fully integrated Inertial Navigation System for accurate sensor time tagging and motion stabilization.
The SeaBat T50-R is designed for very fast mobilization on any type of survey vessels, securing minimal interfacing and low space requirements.

1707952122_SeaBat T50-R product leaflet.pdf
