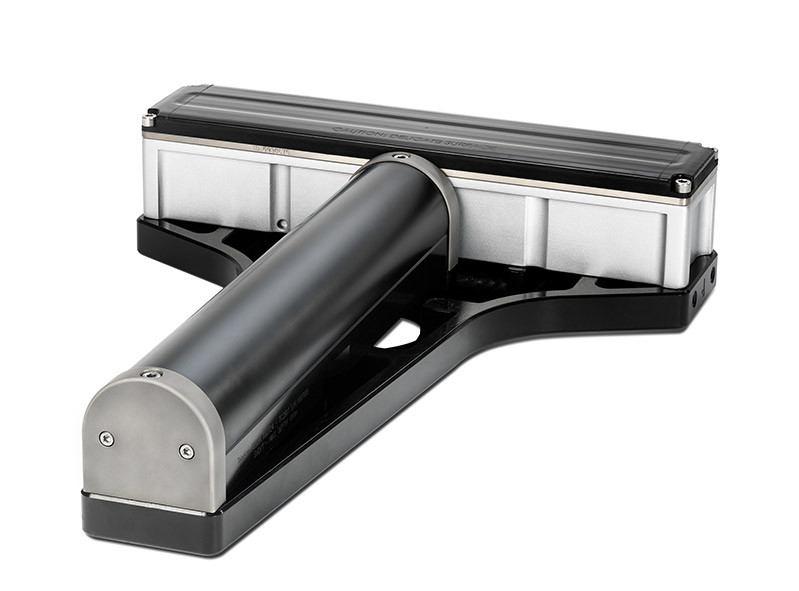

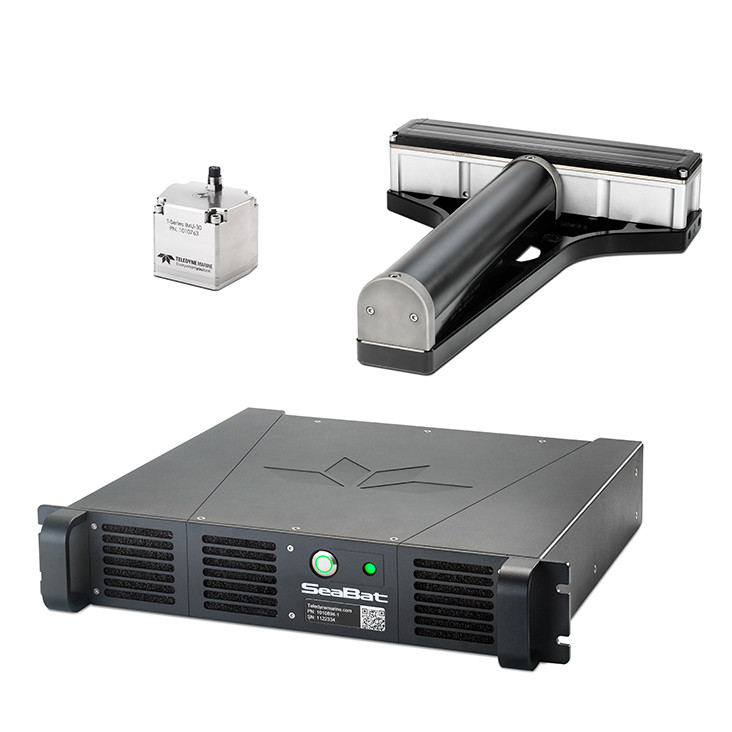

SeaBat T50 Extended Range

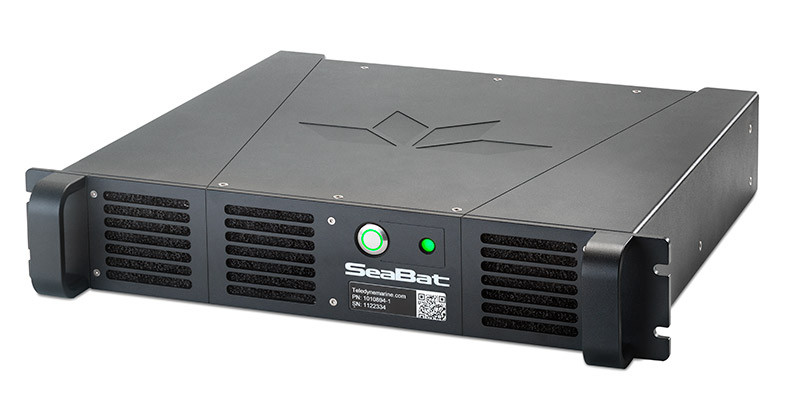

The SeaBat T50 Extended Range is the latest addition to the SeaBat T-series, designed to adapt and grow alongside your business. Paired with a compact Rack-mounted Sonar Processor (RSP), it delivers exceptionally clean data with unprecedented resolution, enabling faster operational surveys and reduced processing time.


With full frequency agility from 150 to 420 kHz, the SeaBat T50 Extended Range allows for high-resolution surveys in shallow waters and operates effectively in depths of up to approximately 900m.


The optional fully integrated Inertial Navigation System enhances sensor time tagging and motion stabilization, ensuring precise data collection. Designed for swift mobilization on any survey vessel, it requires minimal interfacing and offers low space requirements. Alternatively, it can be installed as a permanent fixture in a sea chest or on a hoist system.

See attachment.

  • All-in-one, fully flexible and fully integrated survey system
  • The compact system allows for fast mobilization, minimal interfacing and extremely low space requirements.
  • Extremely high resolution in shallow water and impressive range performance in deep water.
  • Fully frequency agile from 150 to 420 kHz, allowing for continuous operation from shallow to deep.
  • The new compressed water column data significantly reduces data volume while maintaining the necessary information.


  • 1707951927_SeaBat T50 Extended Range product leaflet.pdf
